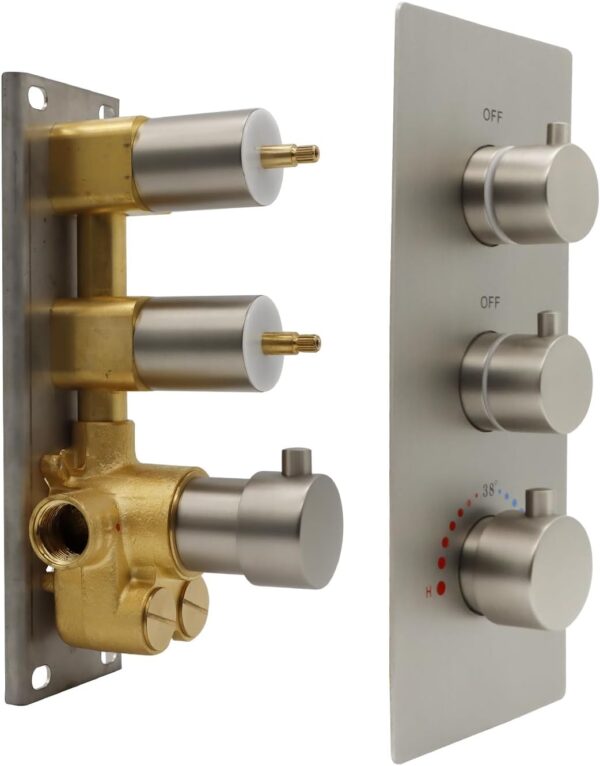

CONCEALED THERMOSTATIC SHOWER MIXER VALVE

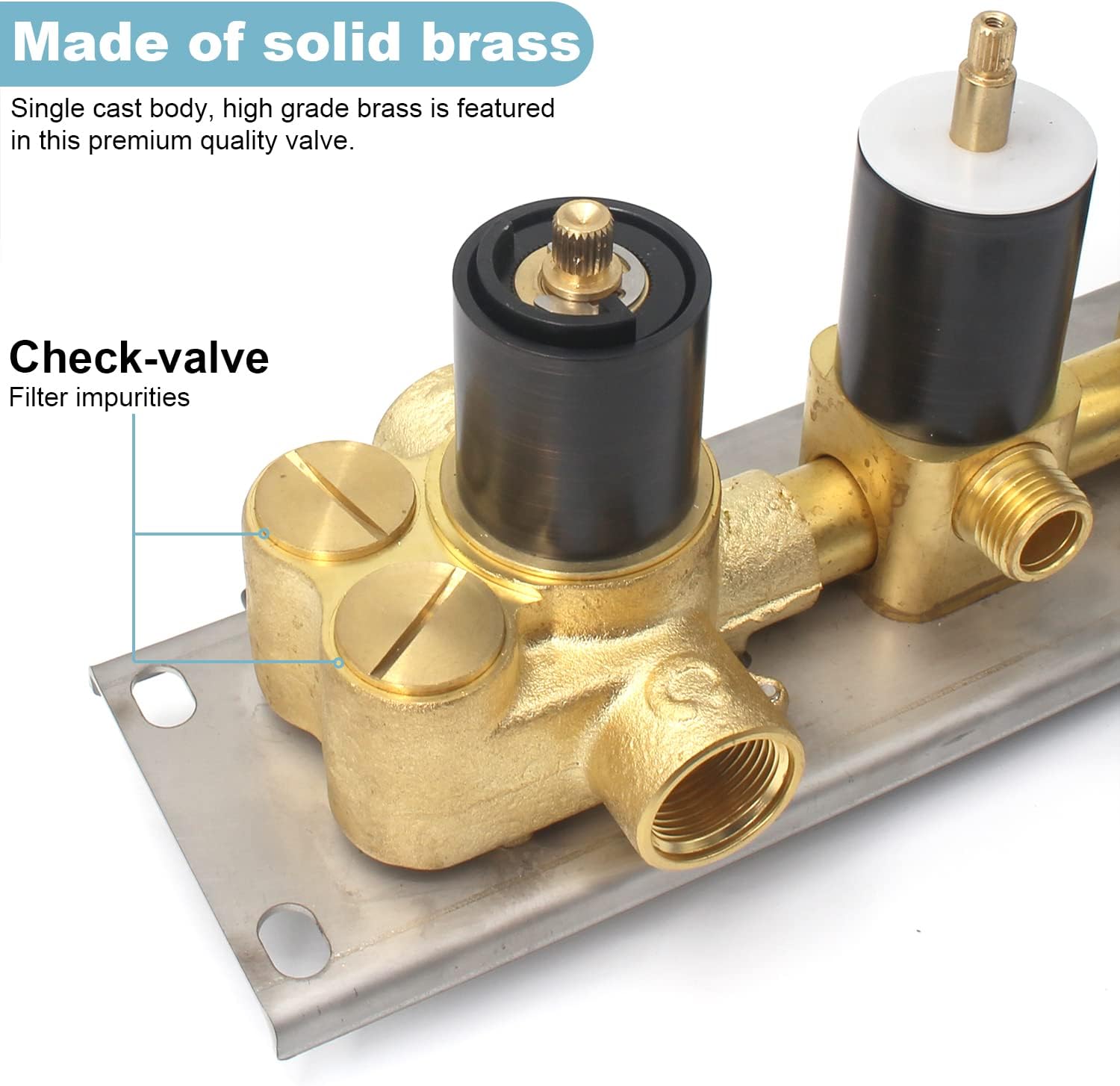

Single cast body, high grade brass is featured in this premium quality valve. It is designed in a way that if maintenance is required whole valve does not require re-plumbing. Built-in anti-scald device means no more fluctuating water temperatures while showering. It equips with high-sensitive temperature sensing parts that can automatically control hot water and cold water to ensure constant temperature (0-50) outlet water in a short time to realize water saving. Also, it can automatically shut off when cold inlet or hot inlet suddenly cut off, to prevent burns and colds. Thus, it is quite suitable for the elderly and children.

Thermostatic mixer valve feature

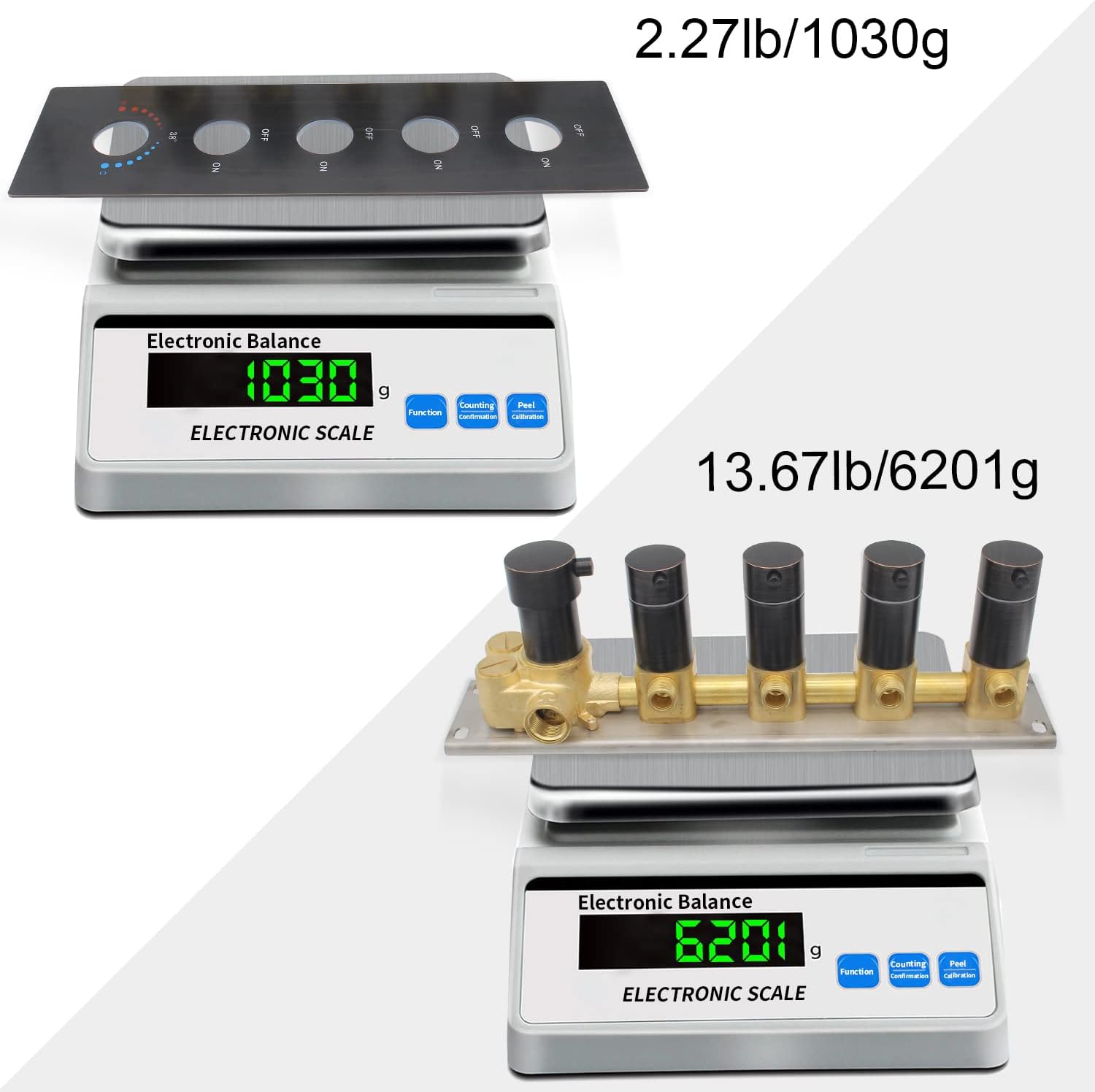

1. Constructed from solid brass for durability and reliability,Finished in a high quality, corrosion resistant polished Brushed Nickel.

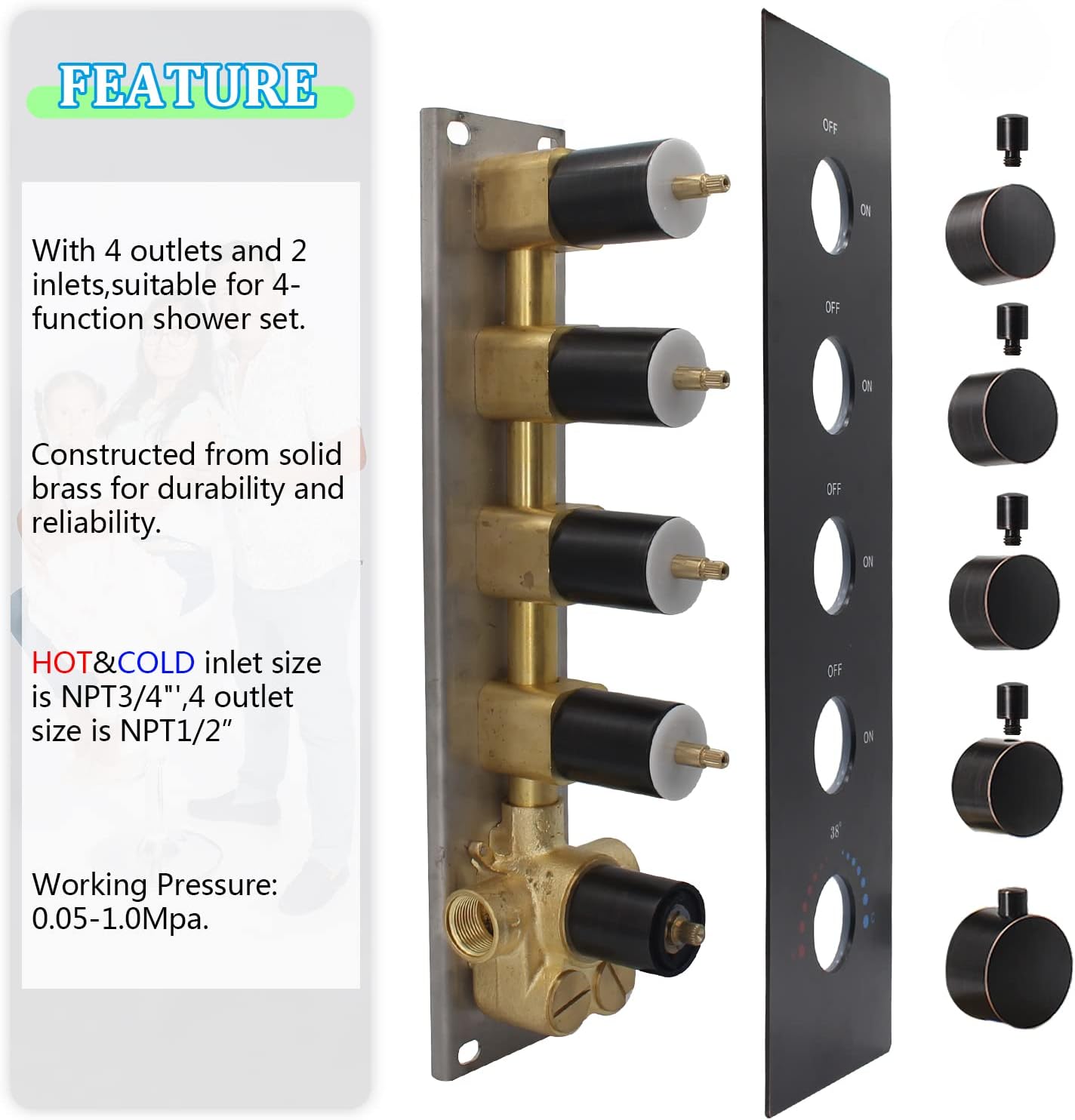

2. With 4 outlets and 2 inlets, suitable for 4-function shower set.

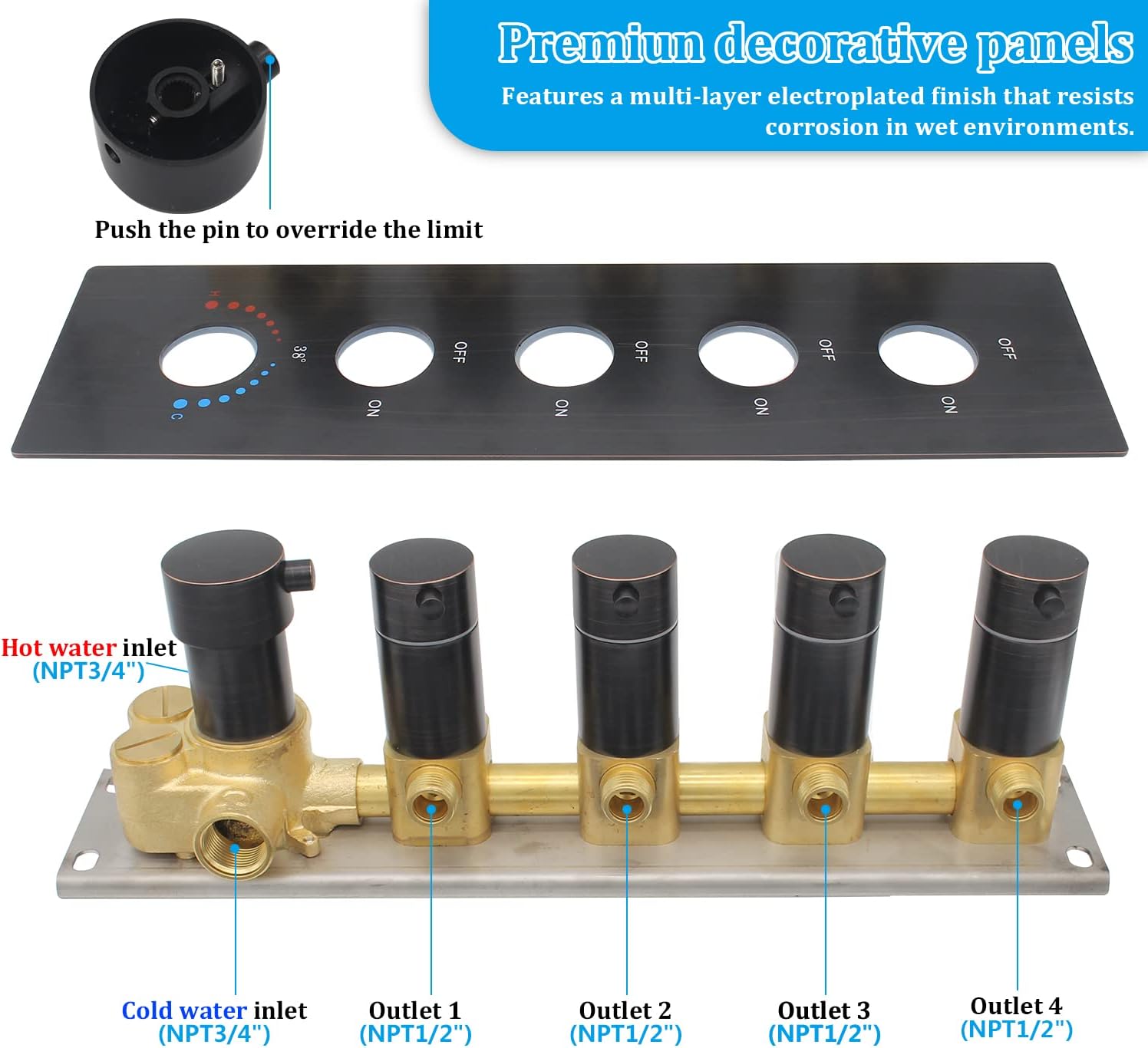

3. Valve connect size: HOT & COLD inlet size is NPT3/4”, four outlet size is NPT1/2”

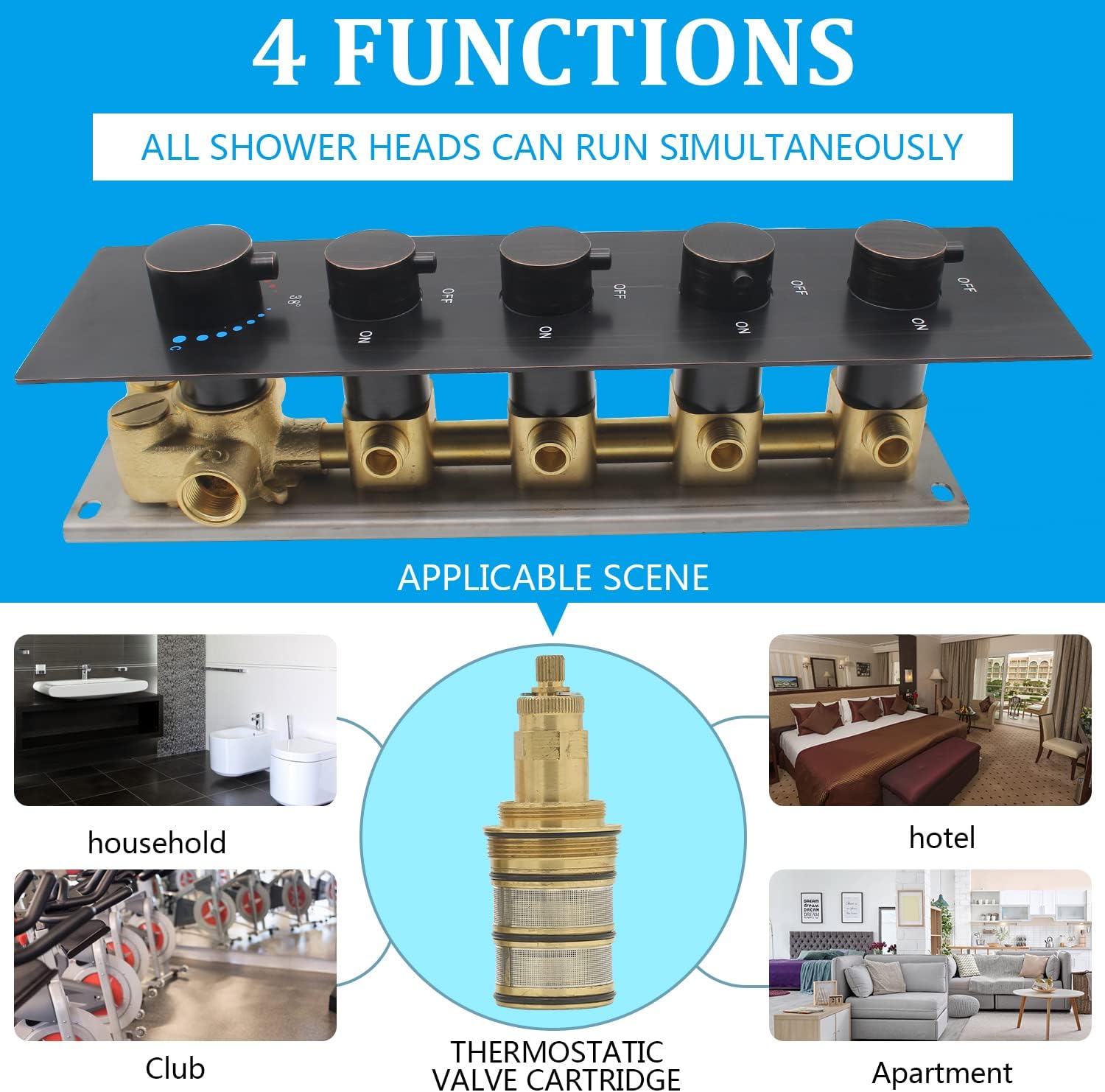

4. Every function is controled by a single knob, so all the 4 functions can work simultaneously or separately.
5. Features thermostatic temperature for scald prevention.

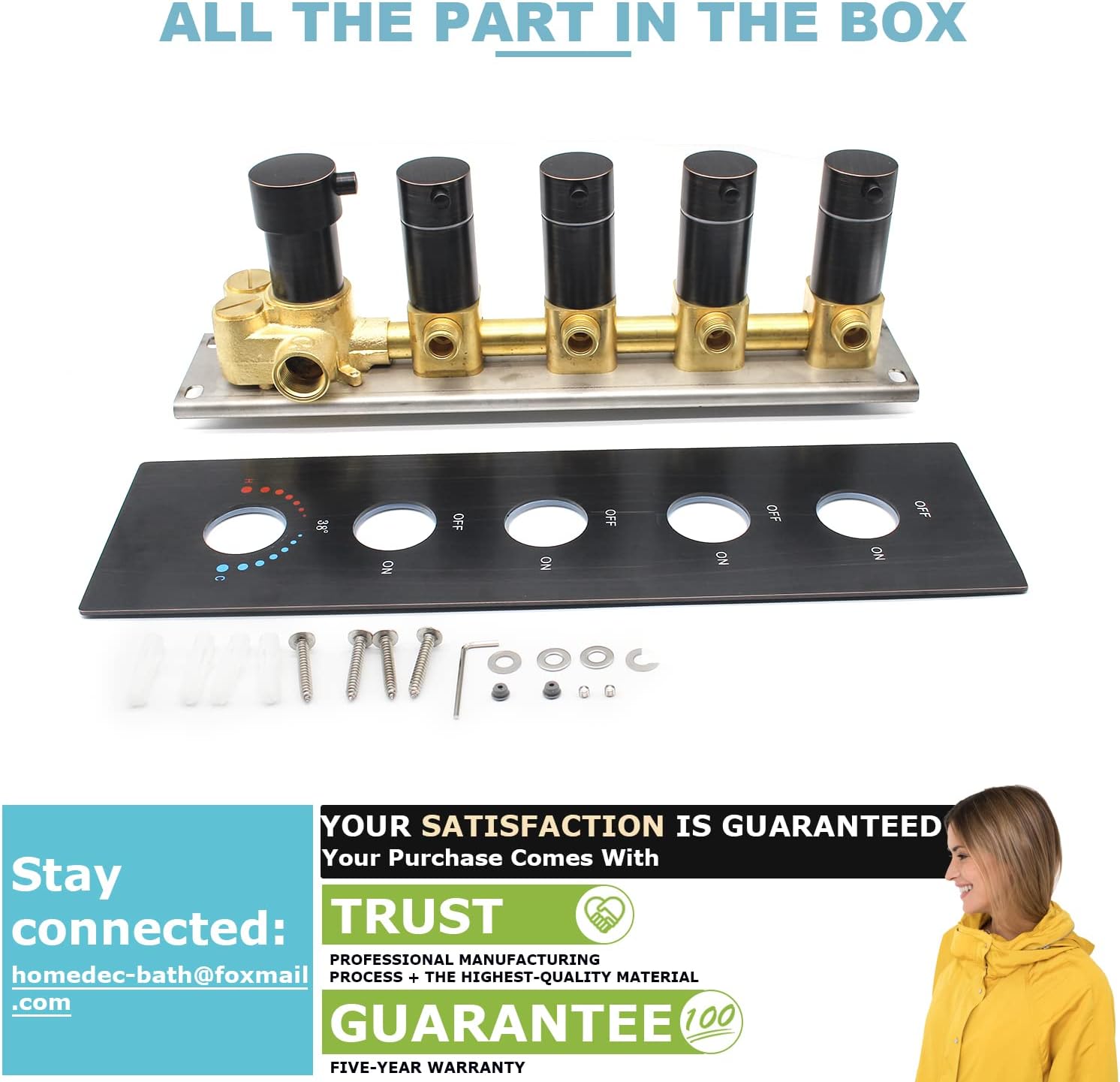

6. The handle knobs and cover plate are included.
7. Working Pressure:0.05-1.0Mpa
8. Cold water Temperature: 5°C-29°C
9. Hot water temperature: 50°C-80°C
10. Fully Thermostatically controlled, no need to adjust temperature hardly each time
11. 3/4″ hot/cold inlets with built-in non-return valves to prevent backflow
12. For best performance 1 Bar pressure is required

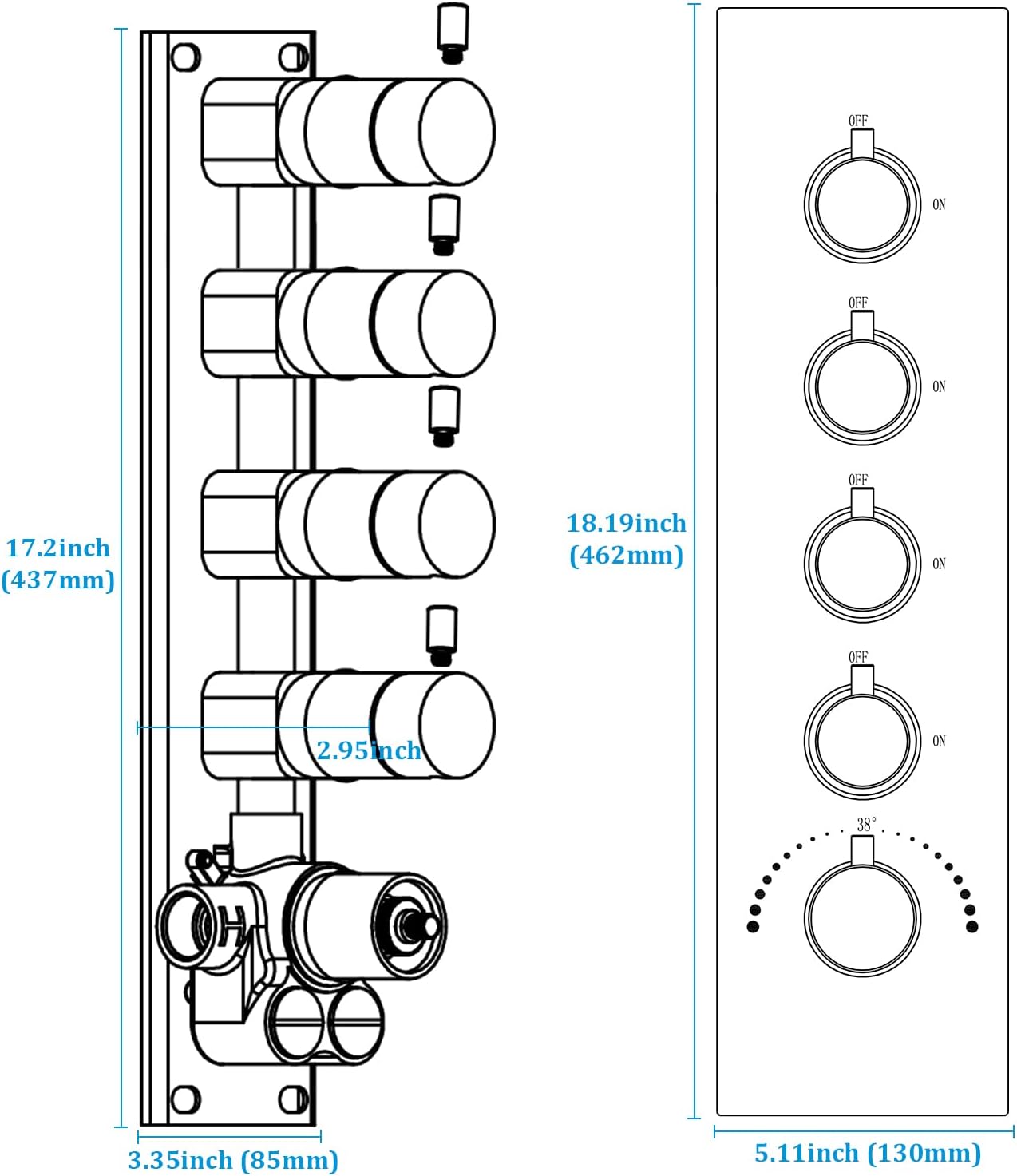

13. For more dimensions please see technical drawing
