Description

HOMEDEC THERMOSTATIC SHOWER VALVE – ALL THE OUTLETS ARE CONTROLLED SEPARATELY

HOMEDEC 4 Handle Shower Valve Install Video

3 Function Thermostatic Mixer Valve Features

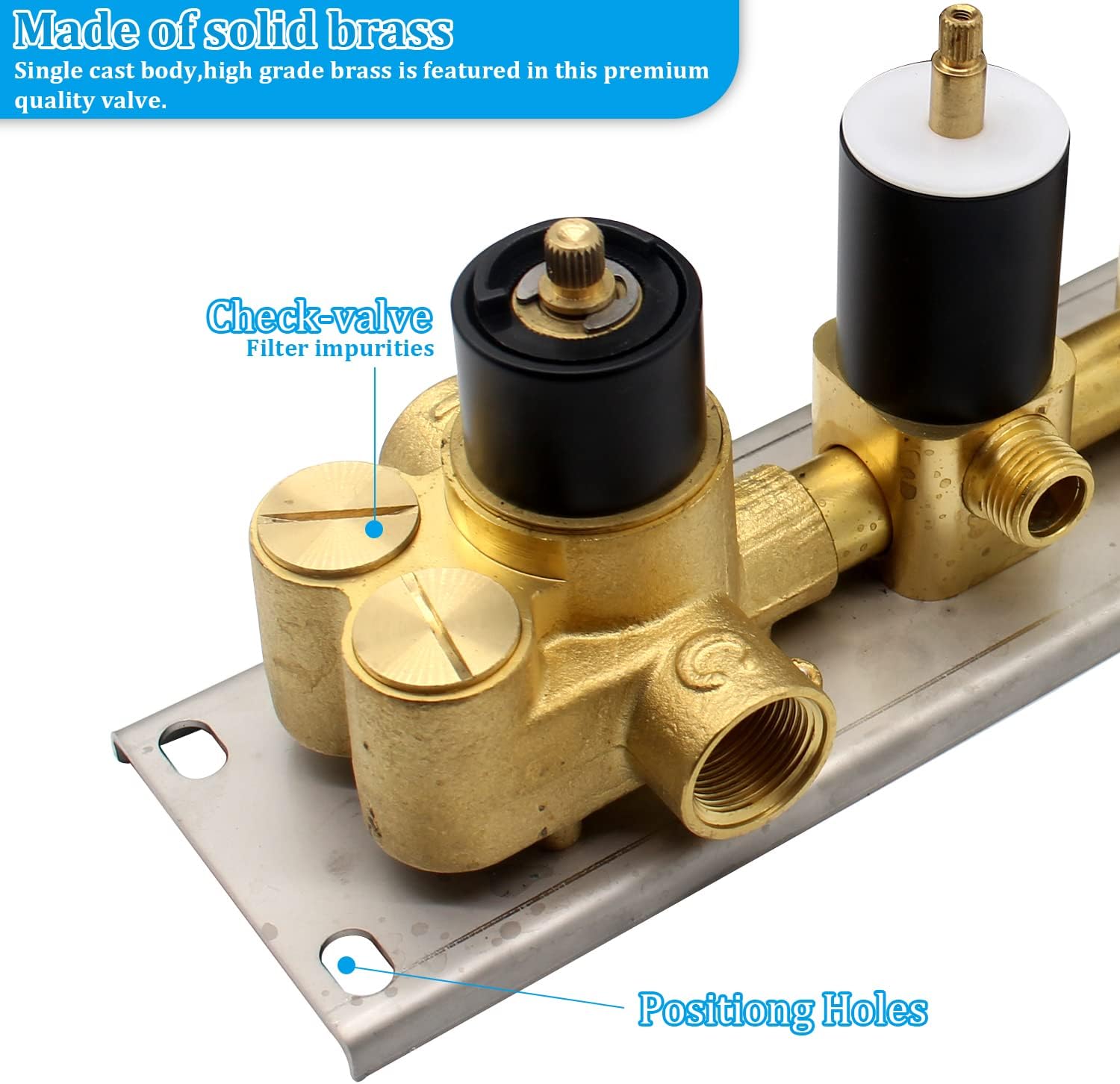

Material & Finish	Solid brass constructed with premium electroplated surface
Connection Size	Inlets: 3/4”, Outlet: 1/2”
Temperature control	Anti-scald. No need to adjust temperature hardly each time.
Installation	Concealed

Cold Water Temperature	5°C-29°C （41℉-84℉）
Hot Water Temperature	50°C-80°C（122℉-176℉）
Tip	For performance 1 Bar pressure is required
Working Pressure	0.05-1.0Mpa

HOMEDEC SHOWER VALVE WATERWAYS

The certified ASME stamp or code for the valve is?

Products are certified to the following standard(s): ASME A112.18.1-2018/CSA B125.1-18

Can you control the water flow rate by turning the knobs, say half-way? Or is it strictly on or off?

Yes, the volume, flow rate, and on/off can be controlled by turning the knobs.

Cover plate doesn’t line up with the controls

HOMEDEC supports limited customer support and will provide free replacements.

where could I get the cartridge or seals?

HOMEDEC supports limited customer support and will provide free replacements.

Technical Details

Material

‎Brass

Brand

‎HOMEDEC

Exterior Finish

‎Brass

Number of Ports

‎4

Outlet Connection Size

‎0.5 Inches

Specification Met

‎certification

Valve Type

‎diverter valve

Manufacturer

‎HOMEDEC

Part Number

‎HSH-BRS-RO-P32

Item Weight

‎15.57 pounds

Package Dimensions

‎22.28 x 8.25 x 7.25 inches

Country of Origin

‎China

Item model number

‎HDC-HSTZ4BS-21-0331-01

Is Discontinued By Manufacturer

‎No

Size

‎4-way

Color

‎Black

Item Package Quantity

‎1

Number of Handles

‎5

Handle Material

‎Brass

Mounting Type

‎Wall Mount

Batteries Included?

‎No

Batteries Required?

‎No
